Is spring steel magnetic?

Most carbon and low alloy spring steels - including 5160, 65Mn, 1075, and 1095 - are magnetic. Austenitic stainless spring steels such as annealed Type 301 are generally non-magnetic, though cold working raises magnetic response through partial martensitic transformation. A magnet gives a quick indication but cannot identify a specific grade. Use a material certificate, grade marking, or chemical analysis for verification.

What is the difference between spring steel and stainless steel?

Spring steel is selected for strength, elastic recovery, and fatigue resistance. Stainless steel is selected for corrosion resistance. The categories overlap: 301 and 17-7 PH are stainless grades used as spring materials. Choose carbon or alloy spring steel when strength and cost lead. Choose stainless spring steel when the part will see moisture, chemicals, or washdown.

Can spring steel be welded?

Yes, but it needs careful process control. Carbon and low alloy grades such as 5160, 65Mn, 1075, and 1095 form hard, brittle microstructures in the heat affected zone and become crack sensitive. Welding hardened and tempered spring steel also alters the heat treated condition locally and degrades spring performance. Preheating, low hydrogen practice, controlled heat input, and post weld treatment may all be required. For fatigue critical or load bearing springs, avoid welding unless a qualified procedure exists for that material and application.

Is 5160 a spring steel?

Yes. SAE 5160 is a chromium alloy spring steel used for automotive leaf and coil springs. Its chromium content improves hardenability and supports the strength and toughness demanding spring applications require.

What is 65Mn spring steel used for?

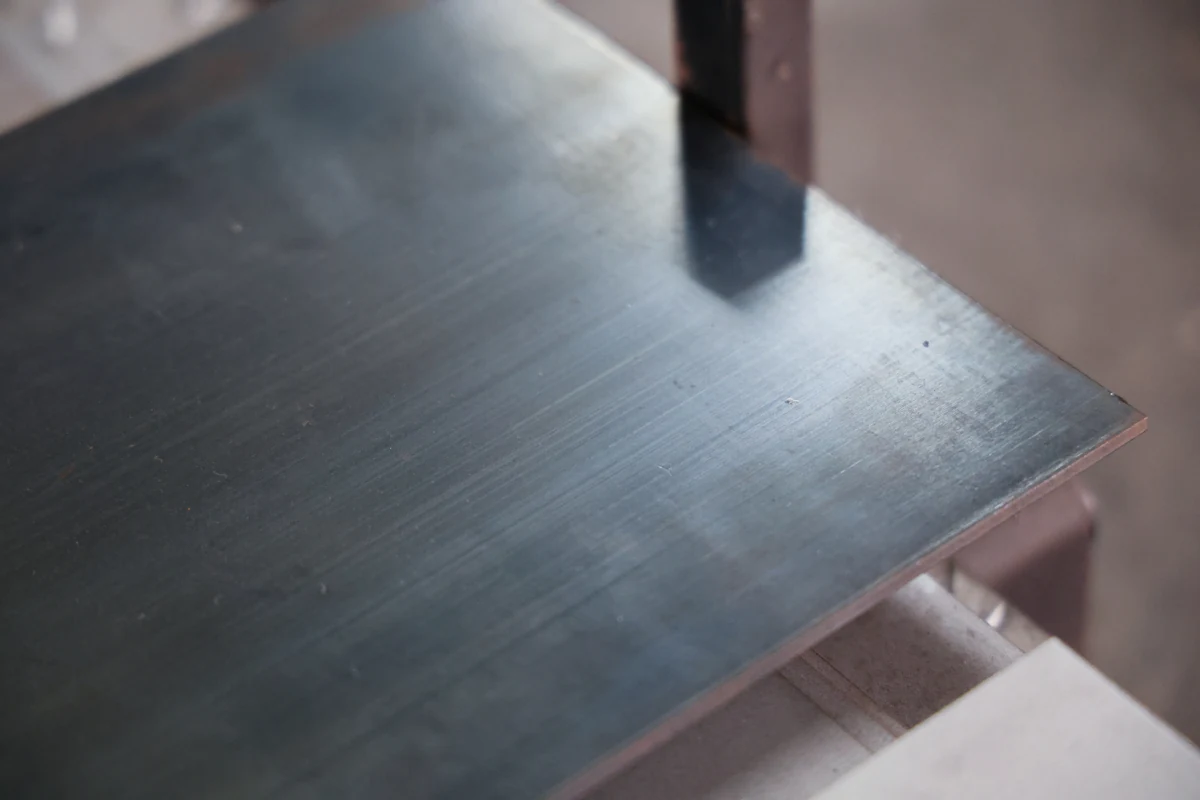

65Mn is used for springs, clips, retaining components, saw blades, and other parts needing strength and elastic recovery. Boda stocks it at the China facility only, in 1.0, 1.5, 3.0 and 6.0 mm sheet, supplied hardened and tempered to HRC 42–48.

Is spring steel available as sheet and strip?

Yes. Both forms are available depending on grade, supplier, and required condition. They are the usual starting point for flat springs, clips, retaining components, and stamped parts.

Can spring steel be laser cut and bent?

Yes. Spring steel sheet and strip laser cut well. Bending depends on grade, hardness, thickness, and bend geometry - springback has to be compensated, and fully hardened material may not be formable at all without cracking. Where the material is supplied at spring temper, as Boda supplies 65Mn, confirm the bend before designing it in.

What Is Spring Steel? Grades, Properties and Uses

Q: What is spring steel?

Spring steel is a high carbon or low alloy steel selected for its ability to flex under load and recover its original shape. Its combination of strength, hardness, toughness, and fatigue resistance suits it to components under repeated loading.

Key Takeaways
What Makes Steel Suitable for Spring Applications?
What Properties Matter in Spring Steel?
What Are the Common Spring Steel Grades?
5160 vs. 65Mn: Which Should You Choose?
What Forms of Spring Steel Are Available?
How Is Spring Steel Processed into Custom Parts?
How Do You Choose the Right Spring Steel Grade?
What Are the Common Uses of Spring Steel?
FAQ
